Min. Myalelo:1 Piece/Pieces
Ibhanti: Ukunyuka
Imveliso: 189k
Indawo yokuQala: Shenzhen
Sekiso: ISO9001/CE/ROSH/UL/FCC
15.4 "I-Tft ephezulu ye-LCD ye-LCD, le phala ye-LCD iqaqambile nge-1000, ilanga elifundisiweyo. Le modyuli ye-LCD ye-LCD.
Iscreen esiphezulu sokukhanya esingaphandle sekrifti ye-right sombala ngamnye silungelelaniswe kwi-D65 (i-6500k) cie icime; I-500-1000 yee-its inokukhetha, ukuqaqamba okuqaqambileyo kungaphezulu kwe-90%.
15.4 "I-Tft ephezulu ye-Tft ye-LCD ye-LCD, ixhotywe ngokukhanya okungekho mthethweni, i-backlight drived ngomqhubi we-LED, iqondo lokusebenza: -30 ° 80 ° 8 ° 8 ° 8G (14.7m /s²)

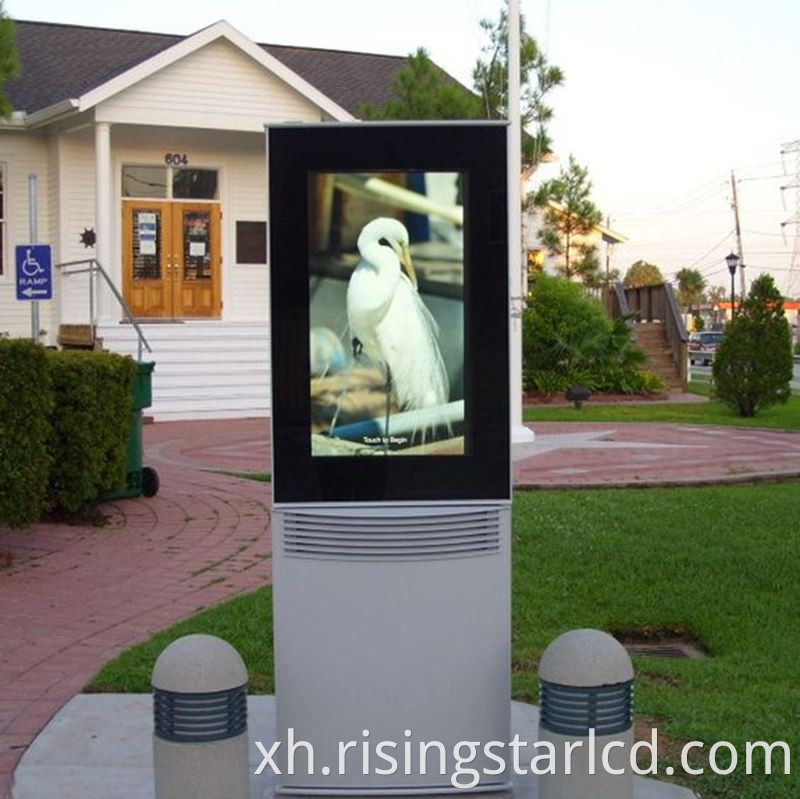

15.4 "Ukuqaqamba okuphezulu kusetyenziswa ngokubanzi kwimiboniso yolawulo lwamashishini, amakhadi e-elektroniki, iincwadana ezinemidlalo entsha, ukuveza kwekhabhathi, iiphaneli zolawulo lwezandla zangaphandle, izikrini zemoto ,, njl.
| Product size | 15.4 inch | Type | a-Si TFT-LCD |
| Pixel Format | 1280(RGB)×800[WUXGA] 98PPI | Configuration | RGB Vertical Stripe |
| Active Area | 334.5(H)×210.3(V) mm | Outline Dim. | 352(H)×230(V) ×9.5(D) mm |
| Viewing Angle | 80/80/70/70 (Min.)(CR≥10) | Treatment | Glare , Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 5/11(Typ.)(Tr/Td) |
| Support Color | 16.2M 56% NTSC | Light Source | WLED , 50K hours , With LED Driver |
| Weight | 880g | Designed For | Outdoor High Brightness Automotive Display |
| Frequency | 60Hz | Touch Panel | Without |
| Interface Type | LVDS(1 ch,6/8-bit) , 30pins | ||
| Power Supply | 3.3V (Typ.) | ||
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
Iithegi ezishushu: 15.4 I-intshi i-intshi ye-Inch ye-Tft ye-TCD ye-LCD, i-China, umzi-mveliso, i-LCD yeScreen, iTV Isikrini
I-15.4inch i-1000 its ngaphandle kwe-tft ye-LCD ye-LCD
I-15inch 1000nets LCD Screen
